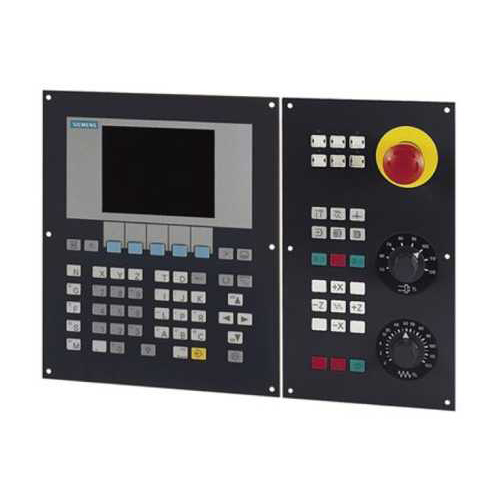

Membrane Keypad Keyboard

Get a Price/Quote

MOQ : 10 Units

Membrane Keypad Keyboard Specification

Installation Guideline
Adhesive backing provided; peel and stick on clean surface

Tolerance
0.2 mm

Temperature
-20C to +70C

Weight
Approx. 15 grams (depends on dimensions)

Input Voltage
Max 24V DC

Process
Customized as per design

Finish
Matte or Glossy

Size
Custom as per requirement

IP Rating
IP65 (front face)

Thickness
0.7 mm to 2 mm

Equipment Type
Electronic Control Interface

Product Type
Membrane Keypad Keyboard

Design
Tactile and non-tactile

Technique
Screen printed layers

Humidity
Up to 95% RH, non-condensing

Dimension (L*W*H)
100 mm x 80 mm x 1 mm (Example; Customizable)

Application
Industrial Control Panels, Medical Instruments, Consumer Electronics, Security Systems

Surface Treatment
UV coated (optional)

Material
Polyester (PET) and Polycarbonate (PC)

Processing
Screen printing, die cutting, and lamination

Mounting Type
Adhesive Mount

Usage
User input device for electronic equipment

Supply Voltage
Max 24V DC

Color
Gray with printed legends (Custom colors available)

Output Voltage
Signal level, passive switching

Service Period
Up to 1 million actuations

Standard
RoHS Compliant, CE Certified

Membrane Keypad Keyboard Trade Information

Minimum Order Quantity
10 Units

Payment Terms
Cash in Advance (CID)

Supply Ability
5000 Units Per Month

Delivery Time
10 Days

Main Domestic Market
All India

About Membrane Keypad Keyboard

Introducing our new release Membrane Keypad Keyboard-an elite addition to any electronic interface. Crafted for industrial, medical, and consumer electronics, this reduced-profile device offers monumental performance with actuation force ranging from 180 to 350 gF. Enjoy an ephemeral yet robust tactile feel, with a best-in-class 1,000,000-cycle switch life and up to 8 kV ESD protection. Fully customizable, it features optional LED integration, multiple connector options, and RoHS compliance. Choose this durable, adaptable solution for your next control panel project.

Advanced Features and Enhanced Versatility

The Membrane Keypad Keyboard boasts pillow or rim embossing, silver or carbon circuit layers, and IP65 front face protection-delivering reliable performance under harsh conditions. Its application spans industrial control panels, sophisticated medical instruments, and secure communication systems. Designed for both tactile and non-tactile usage types, it features an adhesive mount for seamless installation. With custom colors, sizes, and finish options, it serves as a flexible user interface for any machine surface.

Sample, Market Access, and Quality Assurance

Sample keypads are readily available, ensuring you assess the market value before bulk commitments. Express shipping and drop-off services guarantee timely delivery across India. Supported by certifications such as RoHS and CE, our keypads promise standard compliance and optimum reliability. Flexible payment terms cater to both established suppliers and emerging traders, making us a trusted partner for your electronic control interface needs.

FAQ's of Membrane Keypad Keyboard:

Q: How is the Membrane Keypad Keyboard installed?

A: The keypad features an adhesive backing, allowing simple peel-and-stick installation onto clean, flat surfaces, saving time and effort during the setup process.

Q: What certifications does the Membrane Keypad Keyboard offer?

A: Our keypad is RoHS compliant and CE certified, ensuring safety, environmental responsibility, and compliance with industrial standards.

Q: Where can this keypad be best applied?

A: This keypad is ideal for industrial control panels, medical equipment, consumer electronics, and security systems due to its robust design and versatility.

Q: What are the available customization options for this keyboard?

A: You can select key number, color, connector type, dimensions, embossing style, and backlighting options or specify custom legends for your application.

Q: What is the typical service period and durability of the keypad?

A: Built to last, the keypad delivers up to 1 million actuations and sustained performance in demanding environments, making it a long-term solution for frequent use.

Q: How can I request a product sample or place an order?

A: Samples can be requested with express shipping and market drop-off options. Flexible payment terms are available for both bulk and trial orders to suit varying needs.
